S8139
$9999.00
Parameter:
LIVE
CHAT
Form factorProprietary(16.93"x 13.78" )
number of CPU sockets2
CPU series(GEN)AMD EPYC 9004 and 97x4 series processors
Processor Socket TyoeAMD SP5 socket
umber of DIMM slots24
Payment:
Shipping:
Description
| Specification | ||
| Processor | Q'ty / Socket Type | (2) AMD SP5 |
| Supported CPU Series | AMD EPYC 9004 and 97x4 series processors | |
| Thermal Design Power Wattage | 400W | |
| Chipset | PCH | System on Chip |
| Memory | Supported DIMM Qty | (12) + (12) DIMM slots |
| DIMM Type / Speed | DDR5 RDIMM，RDIMM-3DS 4800 MT/s | |
| Capacity | DDR5 ECC RDIMM: up to 2.25TB (96GB *24) DDR5 ECC RDIMM-3DS: up to 12TB (512GB *24) Follow latest AMD DDR5 Memory POR | |
| Memory channel | (12) Channels per CPU | |
| Memory voltage | 1.1V | |
| PCIe Expansion | PCIe Expansion Connectors | (12) MCIO (PCIe5.0 / CXL1.1 x8) (4) MCIO (PCIe5.0 / CXL1.1 x8 or 8 SATA 6Gb/s) (2) MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s) (2) MCIO (PCIe5.0 x8) |
| LAN | Q'ty / Port | (2) RJ45 GbE by Intel i350 |
| (1) GbE dedicated for IPMI | ||
| Controller | Intel i350 | |
| PHY | Realtek RTL8211F | |
| Storage SATA | Connector | (4) MCIO connector for up to 32 SATA (2) M.2 |
| Controller | PCH | |
| Speed | 6Gb/s | |
| RAID | N/A | |
| Storage NVMe | Connector (M.2) | (2) M.2(PCIe3.0 x4 or SATA 6Gb/s) |
| Graphic | Connector type | D-Sub 15-pin |
| Resolution | Up to 1920x1200 | |
| Chipset | Aspeed AST2600 | |

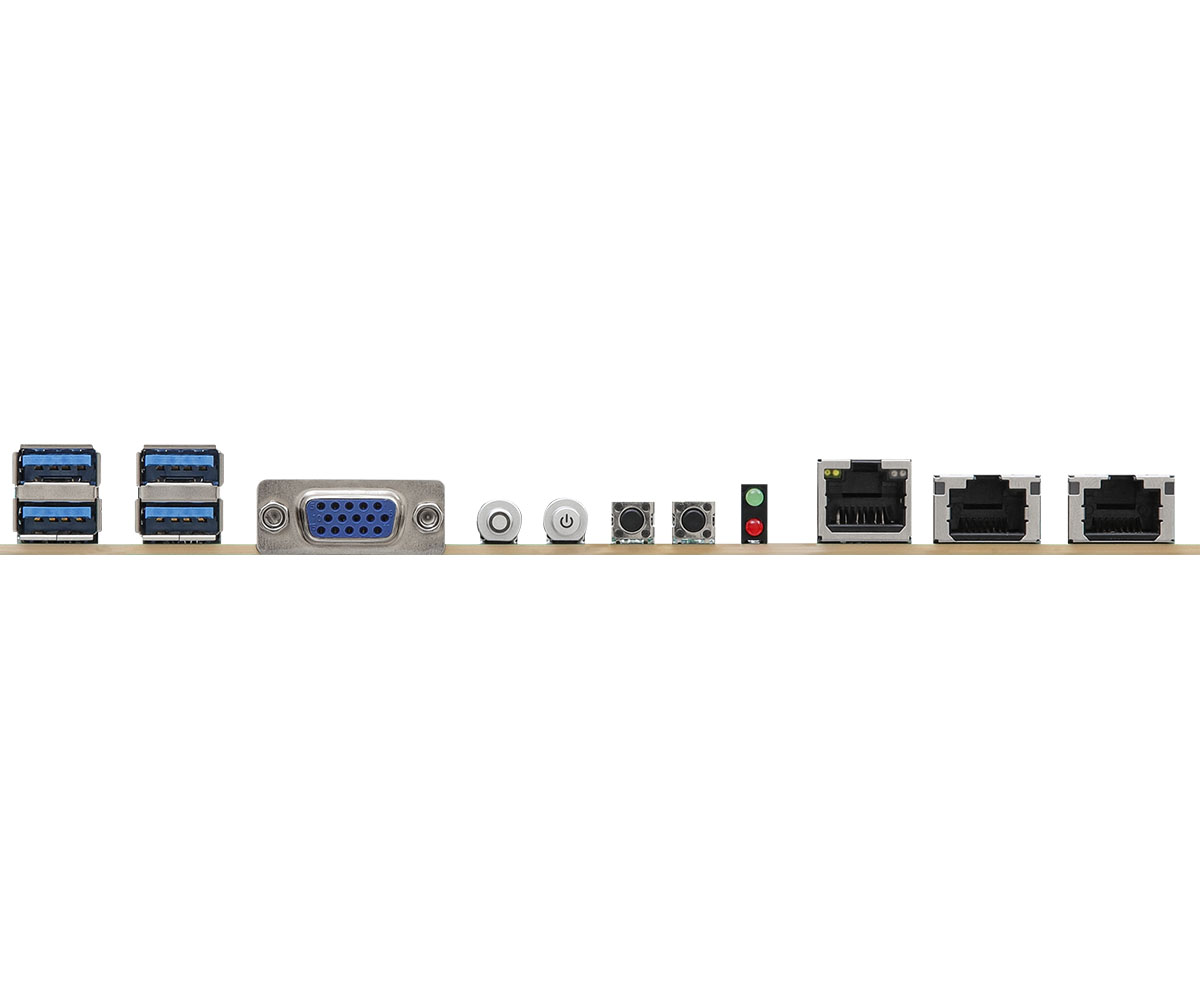

| Rear I/O | UID Button/LED | (1) UID button w/ LED |
| Other Button/LED | (1) PWR button, (1) RST button, (1) NMI button, (1) HDD LED, (1) SYS LED | |
| VGA | (1) DB15 (VGA) | |
| RJ-45 | (2) GbE ports | |
| (1) LAN Port (IPMI) | ||
| USB 3.2 Gen1 Port | (4) Type-A (USB3.2 Gen1) | |
| Internal Connector/Headers | Power Connector | (6) Micro-hi (8-pin, ATX 12V), (1) Micro-Fit (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable |
| Auxiliary Panel Header | (1) 18-pin: chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus | |
| System Panel | (1) 9-pin: power switch, reset switch, system power LED, HDD activity LED | |
| COM Header | (1) | |
| VGA header | (1) | |
| Fan Header | (6) 6-pin | |
| TPM Header | (1) (13-pin, SPI) | |
| SGPIO Header | (4) | |
| HSBP | (1) | |
| SMBus header | (4) | |
| PMBus header | (1) | |
| IPMB Header | (1) | |
| USB 3.2 (Gen1) Header | (2) | |
| NMI Header | (1) | |
| TPM (Optional) | TPM Support | Please refer to our TPM supported list. |
| System Monitoring | Chipset | Aspeed AST2600 |
| Fan | Total (6) 6-pin headers | |
| Temperature | Monitors temperature for CPU, memory & system environment | |
| Voltage | Monitors voltage for CPU, memory, chipset & power supply | |
| LED | Over temperature warning indicator / Fan & PSU fail LED indicator | |
| Others | Watchdog timer support | |
| Server Management | Onboard Chipset | Onboard Aspeed AST2600 |
| AST2600 iKVM Feature | 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub | |
| AST2600 IPMI Feature | IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface | |
| BIOS | Brand / ROM size | AMI / 32MB |
| Feature | ASRock Rack Instant Flash, ACPI 6.4 and about compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP) | |
| Physical Dimension | Form Factor | Proprietary |
| Board Dimension | 16.93"x 13.78" （430.02 x 350.01 MM） | |
| Operating Environment | Operating Temp. | 10° C ~ 35° C (50° F~ 95° F) |
| Non-operating Temp. | - 40° C ~ 70° C (-40° F ~ 158° F) | |
| In/Non-operating Humidity | 90%, non-condensing at 35° C | |
| RoHS | RoHS 6/6 Compliant | Yes |
| Operating System | OS supported list | Please refer to our AVL support lists. |
| Package Contains | Motherboard | (1) S8139 Motherboard |
| Manual | (1) Quick Installation Guide |
